Visualize a molecule without PDB: How to Visualize a Molecule When No PDB Structure Exists (Researcher’s Guide)
Many researchers need molecular visuals for their publications, presentations, or grant proposals — but quickly discover a problem:
the molecule they study has no PDB structure available.
This is extremely common for:
- novel proteins
- unstable or flexible regions
- transmembrane domains
- intrinsically disordered proteins
- proteins with low sequence conservation
- newly discovered pathways
- engineered constructs
- peptides, motifs, and synthetic fragments
Yet journals, reviewers, and audiences still expect clear visuals that represent the mechanism accurately.
So how do you proceed when no crystal structure, cryo-EM data, or NMR model exists?
This guide explains the strategies professionals use to create scientifically faithful molecular visuals even when structural data is missing.
Why There’s No PDB Structure (Most Common Reasons)
Understanding why a structure is missing helps determine the right approach.
1. The protein is too flexible or disordered
Loose or mobile regions are difficult to solve experimentally.
2. The protein is membrane-bound
Membrane proteins are notoriously challenging to crystallize.
3. The protein is too large or too small
Extremely large complexes and small peptides both pose challenges.
4. The protein is novel or poorly studied
Newly discovered proteins may not have been characterized structurally yet.
5. Conformational states are dynamic
Some proteins only stabilize under specific conditions, making structure solving difficult.
Knowing the underlying reason helps select the right visualization strategy.
Strategy 1: Use AlphaFold Predictions (When Appropriate)
AlphaFold provides accurate predictions for many proteins, especially:
- enzymes
- carriers
- receptors
- soluble proteins
- domains with conserved folds
For many researchers, AlphaFold becomes the primary reference model.
Pros:
- free
- fast
- high confidence for many domains
- good for public-facing illustrations
Cons:
- low accuracy in flexible loops
- unreliable for disordered regions
- risky for highly dynamic proteins
- cannot capture induced-fit mechanisms
Best practice:
Use AlphaFold as a structural backbone and visually indicate low-confidence regions.
Strategy 2: Build a Homology Model
If no structure exists but homologous proteins do have solved structures, homology modeling is a strong option.
Common tools include:
- SWISS-MODEL
- Phyre2
- I-TASSER
- Modeller
Pros:
- reliable for conserved domains
- acceptable in many journals
- great for mechanism diagrams
- customizable
Cons:
- accuracy depends on template quality
- sequence identity below 30% reduces reliability
Best practice:
Use homology models only when justified by sequence similarity.
Strategy 3: Combine AlphaFold + Homology Modeling (Hybrid Approach)
For many proteins, the most accurate option is blending:
- AlphaFold-predicted domains
- homology-derived regions
- experimental constraints
- manually refined loops
This creates a balanced and realistic visual — perfect for publication-ready figures.
Strategy 4: Build a Conceptual / Schematic Representation
If realistic structure is impossible, a visual abstraction is often the best option.
This is ideal for:
- intrinsically disordered proteins
- short peptides
- motifs
- dynamic signaling domains
- chimeric constructs
These conceptual visuals can still show:
- binding regions
- activation sites
- conformational changes
- functional domains
- color-coded segments
These diagrams are often clearer for readers than inaccurate pseudo-structures.
Strategy 5: Use Experimental Data as a Visual Anchor
Even without a 3D structure, you may have:
- mutagenesis data
- crosslinking results
- microscopy results
- domain boundaries
- predicted motifs
- coiled-coil predictions
- conserved sequence blocks
A professional illustrator can use these to produce:
- domain maps
- helicity diagrams
- fold predictions
- schematic 3D shapes
These visuals accurately convey the science without pretending to be solved structures.

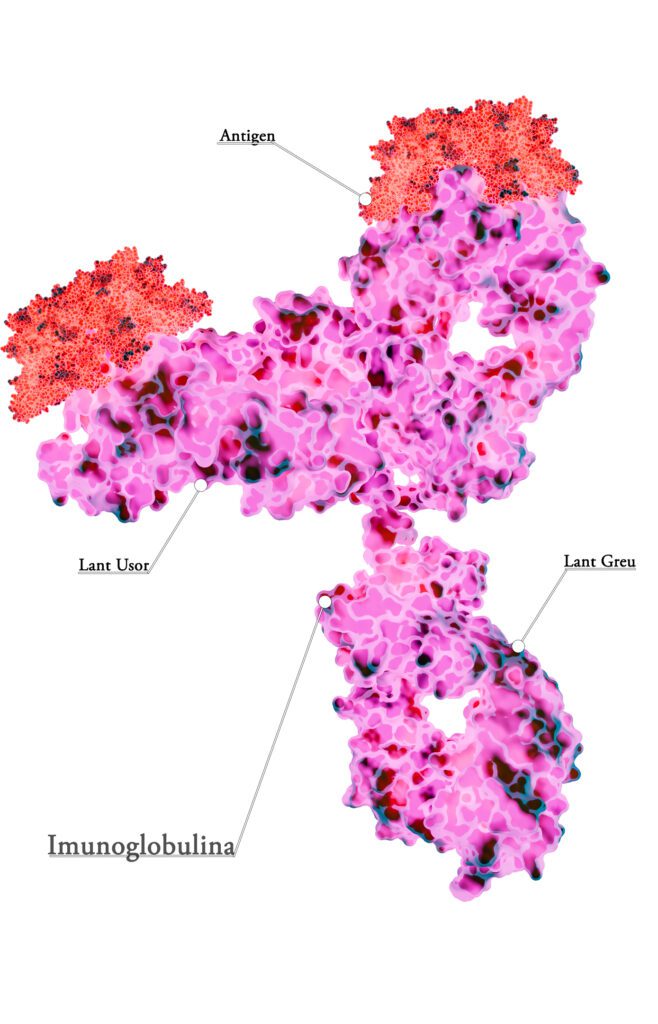

Strategy 6: Create a Stylized Model for Mechanistic Illustration
Many high-end journal covers use stylized, artistic representations that:
- show key interactions clearly
- avoid overclaiming structural detail
- emphasize conceptual understanding
- match the journal’s visual aesthetic
Stylized 3D models are especially effective for:
- receptor–ligand binding
- domain–domain interactions
- cellular pathways
- drug targeting
- immune recognition
They provide clarity without implying false precision.
How to Communicate Uncertainty Ethically in Figures
When structural accuracy is limited:
✔ Indicate low-confidence regions with transparency
✔ Use simpler shapes for unknown domains
✔ Avoid atomic detail where none exists
✔ Clearly label models as “predicted” or “schematic”
✔ Don’t imply solved structures that don’t exist
This maintains scientific integrity while still producing clear visuals.
How Professionals Create Publication-Ready Molecule Visuals Without a PDB
My workflow for missing-structure projects includes:
1. Scientific review
Understanding what is known, predicted, and unknown.
2. Model selection
Choosing between AlphaFold, homology, conceptual, or hybrid approaches.
3. Rough structural draft
Establishing basic form, orientation, and functional areas.
4. Visual abstraction
Simplifying unknown regions while preserving meaning.
5. Cinematic rendering
Lighting, depth, color coding, and clarity adjustments.
6. Journal-formatted delivery
Exporting high-resolution figures or cover art.
The goal: clear, ethical, scientifically honest visuals — without overspeculation.
Need a Molecular Illustration but No Structure Exists?
If your molecule has no PDB entry or structural data, I can help you create a scientifically faithful, visually clear, and publication-ready representation based on:
- AlphaFold predictions
- homology models
- domain maps
- functional data
- conceptual schematics
- hybrid modeling
Send your sequence, data, or paper summary — and I’ll propose the best strategy within 24 hours.
